The most versatile drawer type offered. You determine the size of your drawer by cutting sides from 2438mm (96") continuous lengths and then butt-joining all sides together. Available in the most popular heights and colours.

  • Vinyl and polypropylene are fully wrapped 360° into the groove
  • Moisture and stain resistant
  • Reduced labor costs
  • Durable surface wipes clean in seconds
  • Avoids time-consuming expensive finish application
  • No edgebanding required
  • Snag-free interiors
  • Crisp, professional look
  • No groove routing required

Specifications

  • Length:  8’
  • Thickness: 1/2”, 5/8”
  • Height: 3”, 4”, 5”, 5 1/2”, 6”, 7”, 8”, 9 7/16”, 10”
  • Colours: White, Black, Almond, Sycamore, Dark Maple, Alder, White Maple, Cotton Breeze, Woven Haze, Seaside Grove, Café Latte, Urban Greywood Polypropylene colours: White, Black, Dark Maple
  • Packaging: Laid flat in pallets, protected with cardboard and timber, and secured with plastic banding. Number of drawer units per pallet dependent on profile height and overall length.

Canadian Program – Stock Blanks

Colour Height Approximate Height Pieces Per Skid Weight Per Skid (Approx.)
White 65mm 2-9/16" 715* 2255lbs
White 80mm 3-3/16" 585* 2255lbs
White 100mm 4" 455* 2202lbs
White 130mm 5-3/16" 325* 2100lbs
White 150mm 6" 325* 2300lbs
White 180mm 7-3/16" 260* 2300lbs
White 200mm 8" 195* 1900lbs
White 250mm 10" 195* 2400lbs
Bottom groove options 1) 6.75mm (1/4") wide, 14mm up from the bottom.
2) 4.2mm wide, 10mm up from the bottom.
Note – Skid quantities may vary ± 5%

 U.S. Program – Stock Blanks

Colour

Height

Approximate Height

Pieces Per Skid

Weight Per Skid (Approx.)

White

76 mm

3"

400*

1630 lbs

White

102mm

4"

400*

2188 lbs

White

152mm

6"

300*

2445 lbs

White

178mm

7”

300*

1909 lbs

White

203mm

8"

250*

2177 lbs

White

254mm

10"

2000*

2724 lbs

Bottom groove options 1) 7mm (1/4") wide, 14mm up from the bottom.
2) 4mm wide, 14mm up from the bottom.

Note – Skid quantities may vary ± 5%

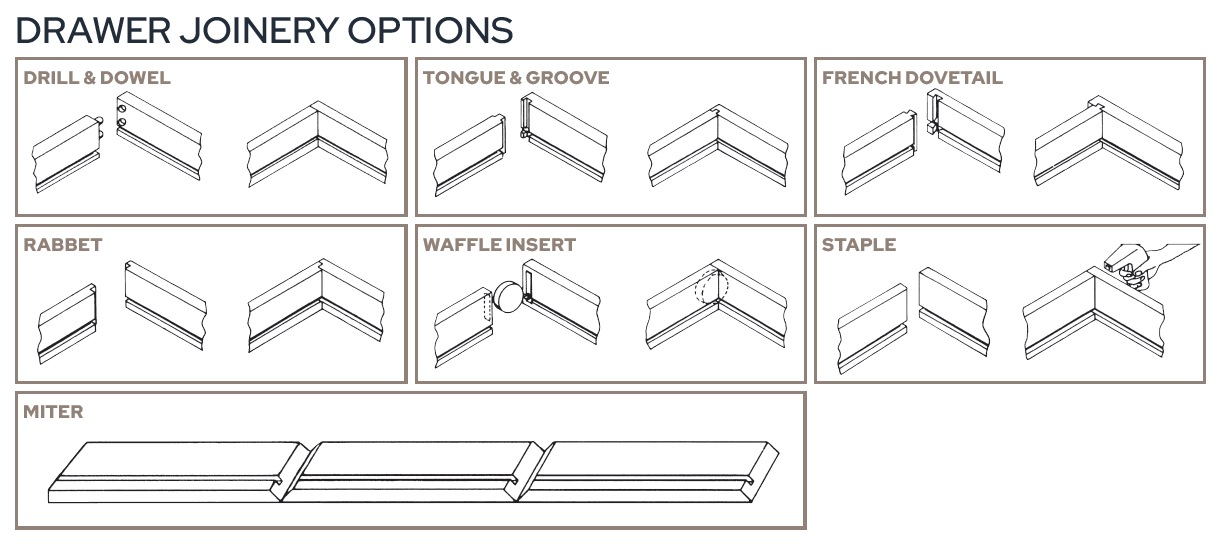

Drawer Blank Assembly Methods

There are many ways to assemble your Vinyl & Polypropylene drawer blanks. Here are some options:


Certification

As a North American leader in the supply of 5 piece door and drawer components, Olon Industries is able to offer our customers products manufactured to comply with the following specific environmental standards.
